2 ELEMENTS 3 BANDS YAGI (10-15-20)

This project was originally developed by Markus VE7CA (Portable Triband Yagi). His version is a portable, wired design and it's very cheap, lightweight, practical, and easy to build.

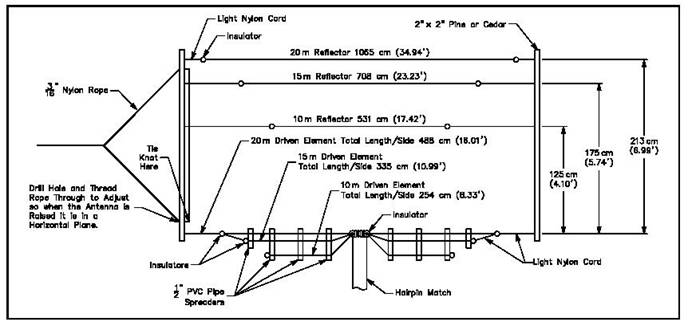

Original version by Markus VE7CA

Taking inspiration from his project creation, I built this "rigid and light" version using a 20X20mm aluminum boom and fiberglass fishing rods as a support for the wire elements.

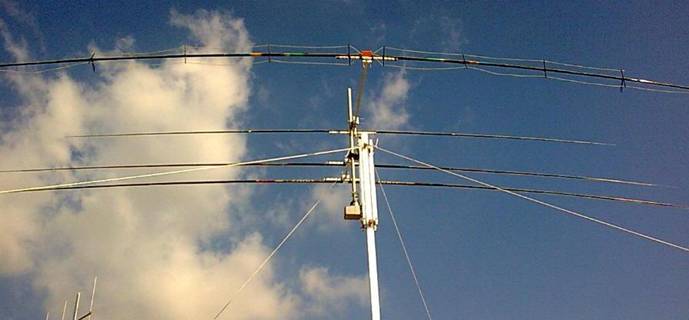

Note the three radiators arranged in rows on the same fishing rod.

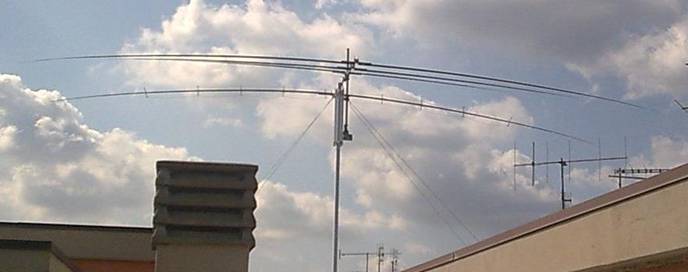

Another point of view of the Yagi

Central support with 15x15mm square aluminum tube and antenna bracket.
